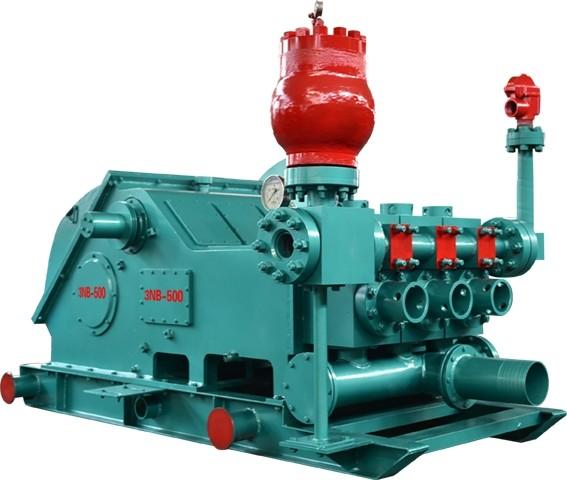

368kw Reciprocating Mud Pumps For Drilling Rigs 500hp

Brand Name : XW

Model Number : 3NB500

Certification : ISO9000

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Delivery Time : 30

Power Rating : 368

Stroke Rating : 120

Stroke Length : 180

Gear Ratio : 4.696

Inlet Dia : 203

Outlet Dia : 83

Contact Now

500 hp/kw 3600*2230*2080 3NB SeriesCementing Pump

3NB-500泥浆泵技术参数表

型号Model

型式Type

输入功率

Input power

额定泵速

Rated pumpSpeed

冲程长度

Stroke length

齿轮传送比

Gear ratio

主动轮额定转速转/分

Drive Wheel Rated speed R/Min

3NB-500

三缸单作用

Triplex Single-Acting piston pump

368kw

500(hp)

135冲/分

Stroke/Min

196mm

4.696

633.96

吸入管径Dia.of Suction Manifold

排出管径Dia.of Discharge Manifold

外形尺寸(立方毫米)

Overall size mm³

重量

Weight(kg)

不含大皮带轮,空气包重(kg)

Not including the Big Belt and pulsation Dampener Weight

203mm

83mm

3600×2230×2080

11000

10000

性能参数表

缸套直径(Cylinder dia) mm

泵速(冲/分)

Pump Speed(Stroke/Min.)

ф100

ф110

ф120

ф130

ф140

ф150

ф160

ф170

理论排量(升/秒)Theoratic Displacement(L/S)(GPM)

135

10.39

12.57

14.96

17.55

20.36

23.37

26.59

30.01

120

9.23

11.17

13.29

15.60

18.09

20.77

23.63

26.68

110

8.46

10.24

12.19

14.30

16.59

19.04

21.66

24.46

100

7.69

9.31

11.08

13.00

15.08

17.31

19.69

22.23

泵压Pump pressure(Mpa)

35.0

29.6

24.9

21.2

18.3

16.0

14.0

12.0

机械效率按90% Mechanical efficiency as 90%,容积效率按100% Capacity efficiency as 100%.
